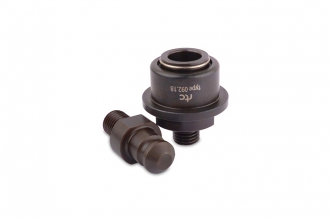

092 Ejector / Knock-out Coupler
092 Ejector / Knock-out Coupler
Body Size (mm.)
Mechanical: 16 / 18 / 25
Pneumatic: 19 / 36
Flow size (mm.)
RTC 092.16 - 1,500 kg
RTC 092.18 – 2,400 kg
RTC 092.19 – 1,500 kg
RTC 092.25 – 3,200 kg
RTC 092.36 – 6,000 kg
Advantage:
- Quick and easy installation
- Return of the ejector plate is assured
- Part ejection is assured
- Coupling is obtained in any position, disconnecting is made only after the ejector plate is fully returned
- Fast acting, up to 30 stokes per minute
- Can be used on all injection machine equipped with hydraulic or mechanical ejection
- Set-Up time can be greatly reduced.
- Reduced noise on machines with mechanical knock-outs
- Especially suited for injection machines that do not have easy access to the ejector plate
